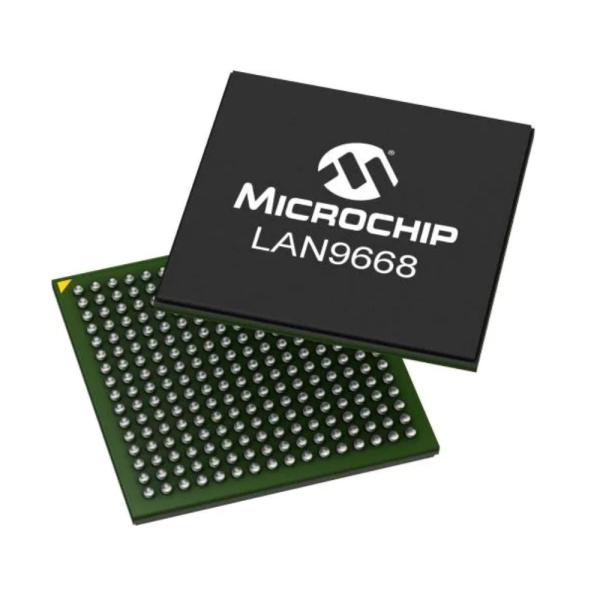

LAN9668/9MX Integrated Circuits ICs , 8 Port Ethernet Switch IC With Cortex A7 CPU 0C To +70C

Name: LAN96689MX Integrated Circuits ICs 8 Port Ethernet Switch IC With Cortex A7 CPU 0C To 70C
Brand: Microchip Technology
Price: 1 USD

Brand Name : Microchip Technology

Model Number : LAN9668/9MX

MOQ : 50pcs

Price : Negotiable

Supply Ability : 1000000pcs

Factory Pack Quantity : 119

Manufacturer : Microchip

Product Category : Ethernet ICs

Packaging : Tray

Brand : Microchip Technology / Atmel

Moisture Sensitive : Yes

Product Type : Ethernet ICs

Subcategory : Communication & Networking ICs

Contact Now

LAN9668/9MX Ethernet ICs 8 port TSN Gigabit Ethernet Switch with Cortex A7 CPU 0C to +70C

Microchip Technology LAN9668 8-port Ethernet Switches

Microchip Technology LAN9668 8-port Ethernet Switches are compact and cost-effective, with multi-port Gigabit Switches. These switches are integrated with 10/100/1000BASE-T PHYs and 600MHz ARM Cortex A7 CPU subsystem. The LAN9668 ethernet switches are Time-Sensitive Networking (TSN) switches that deliver IEEE standards-compliant features to lower latency data traffic flows and greater clock accuracy. These Ethernet switches include 8 ports and support up to two RGMII/RMII, and three 1000BASE X/SerDes/2.5GBASE-X/KX. In addition to the two integrated PHYs, they also support up to two Quad-SGMII/Quad-USGMII interfaces. Warehouses and industrial ecosystems rely on TSN and Ethernet for precise timing, synchronization, and connectivity of devices including cameras, barcode readers, scanners, and conveyors.

FEATURES

802.1AS-2020
802.1CB Frame Replication and Elimination (FRER)
802.1Qch Cyclic Queuing and Forwarding (CQF)
802.1Qbv Time-Aware Shaper (TAS)
802.1Qbu/802.3br (Frame Preemption)
802.1Qci Per-Stream Filtering and Policing (PSFP)

Completely managed L2 switching and L3 forwarding features
Industrial Temperature range
VSC6817 IStaX Linux Application Software Package for Managed Ethernet Switches
Up to 8x 1G ports
Easy upgrade within SparX-5i family to higher bandwidth

APPLICATIONS

Connected warehouses and industrial ecosystems
For connectivity of cameras, barcode readers, scanners, and conveyors
Interconnected devices, sensor, and equipment communication

APPLICATION SOFTWARE

For the Management of Ethernet applications, a comprehensive Application Programming Interface (API) and turnkey software development package are accelerated with time-to-market. The software API package integrates easily with third-party software, preserving existing software investments.
